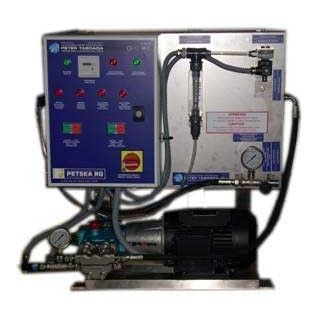

Domestic desalination - 500-600 l / day View full size

Domestic desalination - 500-600 l / day

Compact desalination removes 98.6 % of the salt and to produce between 500 and 600 liters of drinking water. ,is mounted on a steel structure that ensures high corrosion resistance in marine environments. ,all components are arranged to ensure efficient service and fac

PS-RO 56

9 Items

In Stock

7 550,90 €

More info

Compact desalination removes 98.6 % of the salt and to produce between 500 and 600 liters of drinking water. ,is mounted on a steel structure that ensures high corrosion resistance in marine environments. ,all components are arranged to ensure efficient service and facilitate maintenance. ,specifications: ,model : 5/6 ,yield: 500 - 600 l / day. ,power : 2 kw . ,power connection : 3/4 " . ,rejection connection : 1/2 " . ,output connection : 1/4 " . ,maximum salinity of sea water : 40 000 ppm . ,sea ??water temperature : 2-40 º c . ,noise: 78 db. ,dimensions: 1191 x 675 x 260 mm ,weight : 50 kg . ,features ,feed pump low pressure : compact small size , made ??of stainless steel and maintenance free mechanical seal . ,ensures the flow of water into the high pressure module after passing through the filter media and filters micrometricyears. ,multimedia filter quartz sand and anthracite : performs screening particles larger than 50 microns, which are the major marine pollutants. ,composed of gravel , coarse sand , fine sand, anthracite and iron-removing equipment , ensures filtration of suspended particles, dissolved organic matter and any oxide particles . ,microfilter : prefilter cartridge preventing arrival at the membrane of particles larger than 5 microns. ,a housing consisting of polypropylene and polyester filter material cellulose . ,high pressure pump : designed triplex piston to produce a uniform flow over the membrane , ceramic plungers , pressure of 105 bar , temperature max working 71 º c ; engine brand abb ; allows maintenance without removing the pump ,the pipe and replacing seals, gaskets and seals without adjustments . ,reverse osmosis membrane : a thin film composedwith spiral twist made ??from polyamide . ,allows for the removal of 96.8% of the salt and the production of water with a high level of purity. ,pressure vessels : its manufacture cured epoxy resin matrix while hot and the glass fiber reinforcement assure maximum durability and mechanical strength. ,pressure: 1000 psi. ,structure: compact unit mounted on stainless steel frame to ensure maximum corrosion resistance in marine environments. ,connections : the inputs and outputs of sea water and high pressure racorrería are made of 316 stainless steel , which also prevents breakage by vibration. ,all conduits in contact with the drinking water are made from food grade material . ,instrumentation : high pressure gauge ( 0-1000 bar) , low pressure gauge ( 0-6 bar) , pressure high and low pressure, flow , salinity timer and electronic controller . ,protection : connectionselectrical and metal cabinet watertight , thermal protection of pumps. ,scaling : expandable system with the installation of extra membrane . ,the desalination plant is dimensioned to support a performance boost without modifying their pumps or other hydraulic equipment . ,request more information and price: click here
